ALPHA40/1.5M/SMAM/S/S/29
£10.37
5G/4G/Dual Band Wi-Fi and ISM Adhesive T-bar Antenna SMA Male 1.5m Cable
Balanced dipole design – ground plane independent
Low loss PRO100 cable with reduced attenuation
Flexible: for fitting to large radius, curved s
Want to be notified when this product is back in stock?
Images are for illustrative purposes only.
Contact us for information regarding lead times and incoming stock.
- Description
- Additional information
- Reviews (0)
Description
The Alpha 40 is a versatile, wideband antenna that can support various IoT applications flexible antenna construction makes it suitable for fitting to large-radius and curved surfaces The simple installation process with adhesive pads makes it an ideal choice for IoT applications where space is limited Supporting a wide range of Technologies, including 5G NR, Dual Band Wi-Fi, LoRa and CatM the Alpha 40s balanced dipole design is ground plane independent, and it uses Low Loss PRO100 cable, which reduces attenuation The Alpha 40 antenna is a reliable and high-performance solution for a wide range of IoT applications that require a wideband antenna with excellent coverage and versatility x000D It connects via SMAM It has an impedance of 50 Ohm
Additional information
| Weight | 0.0866 kg |
|---|---|
| Mounting Style | Adhesive |
| Product Series | Alpha |
| Cable Length | 1.5m |
| Connector Type | SMAM |
| Cellular Technology | 2G GSM, 3G UMTS, 4G LTE, 5G NR, LTE CAT-M, LTE NB-IoT |

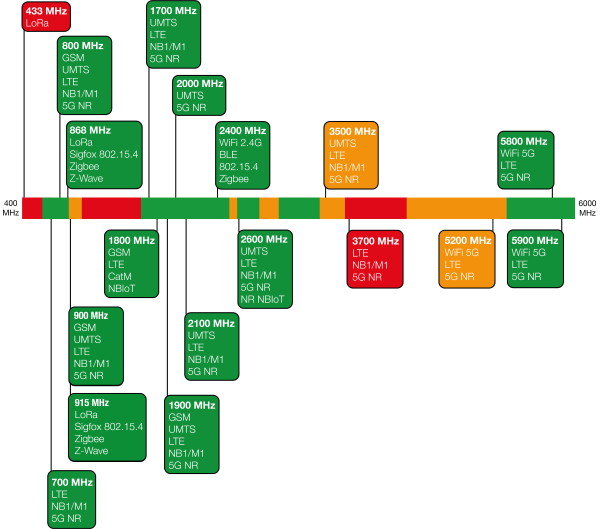

| Non-Cellular ISM Technology | Bluetooth, HNT Helium, ISM 2450, ISM 868, ISM 915, LoRa Wireless, Sigfox, Weightless, Z Wave, Zigbee |
| Impedance (Ohm) | 50 |
| Polarisation | Vertical |
