I25/6/6-3C91
£0.27

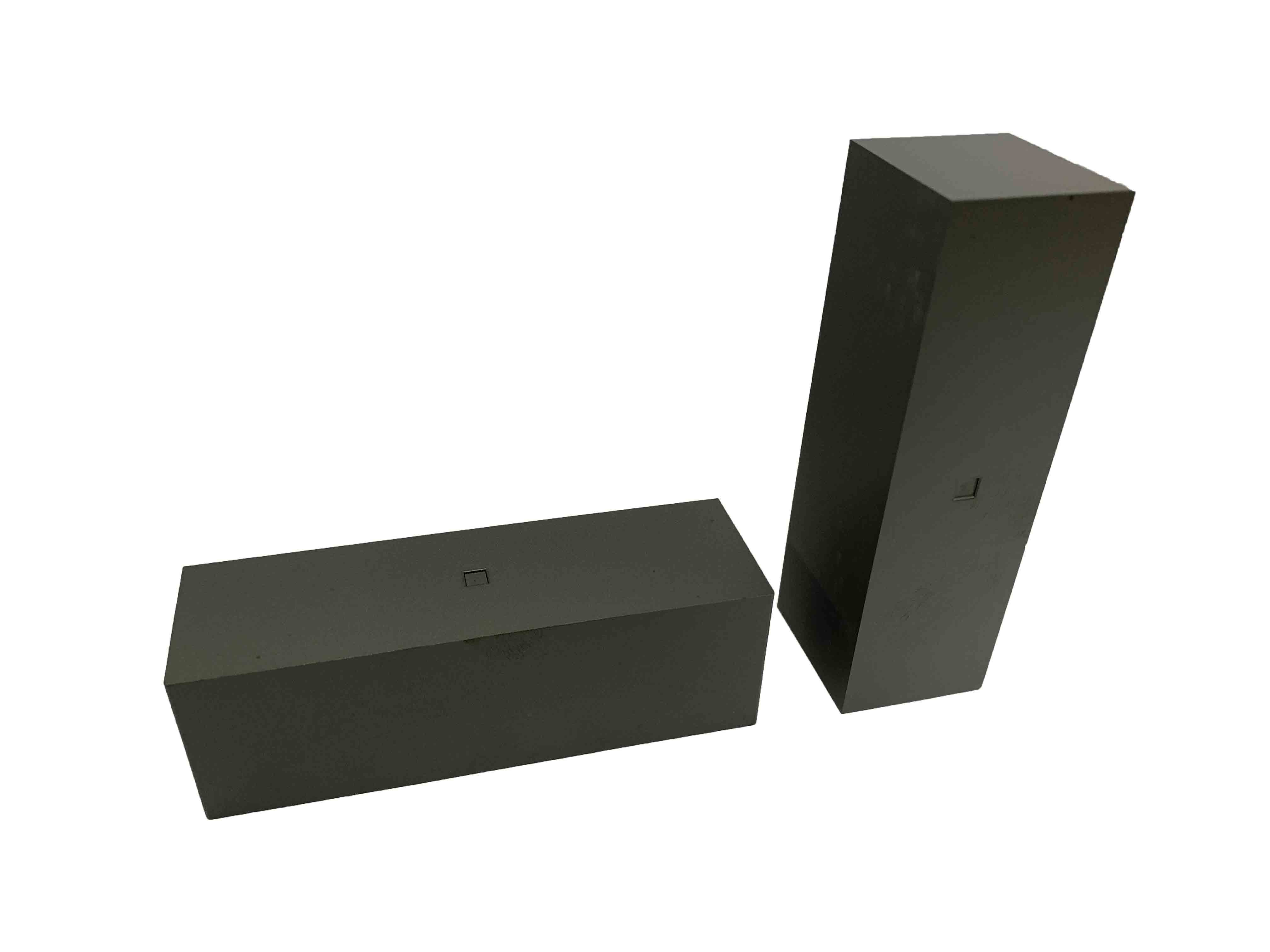

This is a Ferroxcube core made from 3C91 material, with an AL value of 1900 to a tolerance of 25 and with a permeability of 2400 This core is Ungapped
Want to be notified when this product is back in stock?
Images are for illustrative purposes only.
Contact us for information regarding lead times and incoming stock.
- Description
- Additional information
- Reviews (0)
Description
This is a Ferroxcube core made from 3C91 material, with an AL value of 1900 to a tolerance of 25 and with a permeability of 2400 This core is Ungapped
Additional information
| Weight | 0.0045 kg |
|---|---|
| Core Shape | I |
| Material | 3C91 |
| Initial Permeability | 3000 |
| Flux Density - Bsat (mT) @25°C | ~470 |
| Curie Temperature - Tc (°C) | 220 |
| Frequency Range (MHz) | <0.3 |
| Al Value | 1900 |
| Core Size | 25 |
